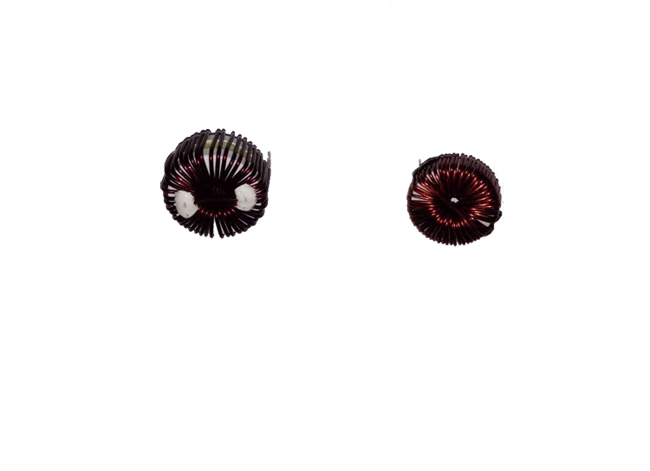

Applications: 1. common mode noise suppression, 2.EMI harmonic filter and various EMC products
Performance characteristics: 1. fewer turns, higher inductance can be obtained;
2. low distribution capacitance;
3. high resonance frequency;
4. smaller size;
5. temperature rise low;
6. can be used for long periods at higher operating temperatures
Performance comparison between Fe based nanocrystalline and ferrite core:
|
基本磁性参数 |
铁基纳米晶铁芯 |
铁氧体铁芯 |
|
饱和磁感应强度Bs(T) |
1.2 |
0.5 |
|
饱和磁致伸缩系数λs(PPM) |
<3 |
4 |
|
电阻率ρ(uΩ·cm) |
80 |
106 |
|
居里温度Tc(℃) |
570 |
<200 |
|
剩余磁感应强度Br(T) |
0.6-0.7 |
0.2 |
|
初始导磁率ui(Gs/Oe) |
>80000 |
-- |
|
最大导磁率um(Gs/Oe) |
>260000 |
<20000 |
|
矫顽力Hc(A/M) |
<1.5 |
6 |
|
规格 |
铁芯尺寸 |
铁芯磁路长度 |
铁芯有效截面积 |
|
|
OD(mm) |
ID(mm) |
HT(mm) |
Lm(mm) |
Ac(mm2) |
|
UT-120845 |
12 |
8 |
4.5 |
31.4 |
6.3 |
|
UT-151045 |
15 |
10 |
4.5 |
39.2 |
7.9 |
|
UT-181245 |
18 |
12 |
4.5 |
47.1 |
18.9 |
|
UT-181108 |
18 |
11 |
8 |
45.6 |
19.6 |
|
UT-181110 |
18 |
11 |
10 |
45.6 |
24.5 |
|
UT-201210 |
20 |
12 |
10 |
50.3 |
28 |
|
UT-211508 |
21 |
15 |
8 |
56.6 |
16.8 |
|
UT-211510 |
21 |
15 |
10 |
56.6 |
21 |
|
UT-231810 |
23 |
18 |
10 |
64.4 |
17.5 |
|
UT-261610 |
26 |
16 |
10 |
66.0 |
35 |
|
UT-261910 |
26 |
19 |
10 |
70.8 |
24.5 |
|
UT-281810 |
28 |
18 |
10 |
72.3 |
35 |
|
UT-302010 |
30 |
20 |
10 |
78.6 |
35 |
|
UT-322010 |
32 |
20 |
10 |
81.7 |
42 |
|
UT-381910 |
38 |
19 |
10 |
89.5 |
66.5 |
|
UT-381915 |
38 |
19 |
15 |
89.5 |
99.8 |
|
UT-402515 |
40 |
25 |
15 |
102.1 |
78.8 |
|
UT-402520 |
40 |
25 |
20 |
102.1 |
105 |
|
UT-504010 |
50 |
40 |
10 |
141.3 |
35 |
|
UT-502520 |
50 |
25 |
20 |
117.8 |
175 |
1., according to customer needs to design a variety of special specifications of the iron core;
2. all cores can be supplied with various winding wires;
3. the core of the iron shell is equipped with movable partition board, which is energy efficient and easy to winding;
4. iron core rubber shell comes with movable base, easy for production and plug-in
